    Hot Selling China GMP Blister Packing Machine Automatic for tablet with CE

    Ask Lasest Price
    Brand Name : zhonglian
    Supply Ability : 100 Unit/Units per Year
    Price : $8,000.00/sets >=1 sets
    • Product Details
    • Company Profile

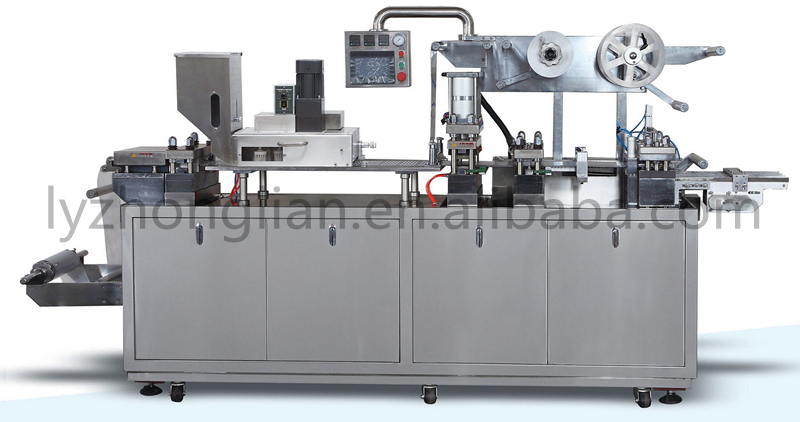

    Hot Selling China GMP Blister Packing Machine Automatic for tablet with CE

    Product Description
    Hot Selling China Blister Packing Machine Automatic for tablet with CE

    Hot Selling China GMP Blister Packing Machine Automatic for tablet with CE

    iv cannula blister packing machine Specification

    1.high precision and good exchangeability
    2.reducer adapts parallel-axes bevel wheel
    3.multi-purpose machine


    iv cannula blister packing machine Features:
    1)machine-tool track type of casting machine-base, taken these processing like backfire, maturing, High benchmark and without distortion.
    2)Each box of section processed through professional equipment to assure high precision and good exchangeability.
    3)Forming,sealing,slitting etc.parts are all could be adjust freely on the track with triangle string and flat string, strong applicability. small oversize, save installation space.
    4)Reducer adapts parallel-axes bevel wheel, To avoid loose and smooth between chain or strap when it is driving.
    5)Stroke can be adjust freely, widely used, ease of operation, stable running.
    6)Mould located by male pin, ease and accuracy of changing mould. Product any sizes and shapes of strip by changing the mould on the same machine, and it also can pack for liquid if liquid filling device equipped.It is multi-purpose machine.
    7)It adapts up and down net pattern concavo-convex to conjugate, multi-step air cylinder, double-heat sealing.

    iv cannula blister packing machine Techenicial parameter:

    Model

    320B

    250B

    140B

    Blanking frequency(times/min)

    15-50

    15-50

    15-50

    Sheet's quantity of one blanking(sheets)

    5-6

    3-4

    1-2

    Capacity (sheets/hour)

    5400-18000

    3600-12000

    1800-6000

    Appropriate for Capsule

    40-150

    40-140

    40-130

    Max Forming area and depth(mm)

    320×130×13

    250×120×13

    140×110×13

    Capacity of air compressor((m3/min)

    ≥0.45

    ≥0.38

    ≥0.36

    Power supply

    380V50HZ12W

    380V50Hz8.5KW

    380V50Hz6.5KW

    Wrapper specification(mm)

    PVC

    320×(0.2-0.5)

    250×(0.2-0.5)

    140×(0.2-0.5)

    Aluminum foil

    320×(0.02-0.035)

    250×(0.02-0.035)

    140×(0.02-0.035)

    Overall dimensions(mm)

    3800×718×1750

    3200×650×1450

    2850×530×1450

    Part size(mm)

    2000×718×1750

    1750×650×1450

    1450×550×1300

    1800×718×1750

    1450×650×1450

    1400×550×1450

    Weight(Kg)

    2000

    1200

    700


    iv cannula blister packing machine Feeding Device:

    Hot Selling China GMP Blister Packing Machine Automatic for tablet with CE Hot Selling China GMP Blister Packing Machine Automatic for tablet with CE

    Shaping and Heat Sealing: PVC shelf :

    Hot Selling China GMP Blister Packing Machine Automatic for tablet with CE Hot Selling China GMP Blister Packing Machine Automatic for tablet with CE

    Inspection and remove the plate of lacking particle:

    Hot Selling China GMP Blister Packing Machine Automatic for tablet with CE Hot Selling China GMP Blister Packing Machine Automatic for tablet with CE

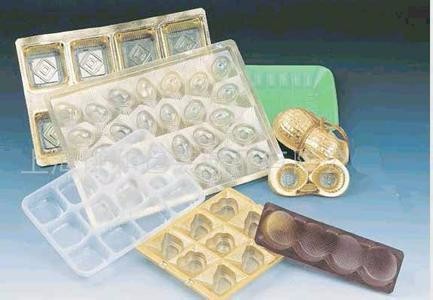

    iv cannula blister packing machine Sample:

    Hot Selling China GMP Blister Packing Machine Automatic for tablet with CEHot Selling China GMP Blister Packing Machine Automatic for tablet with CE

    Hot Selling China GMP Blister Packing Machine Automatic for tablet with CE

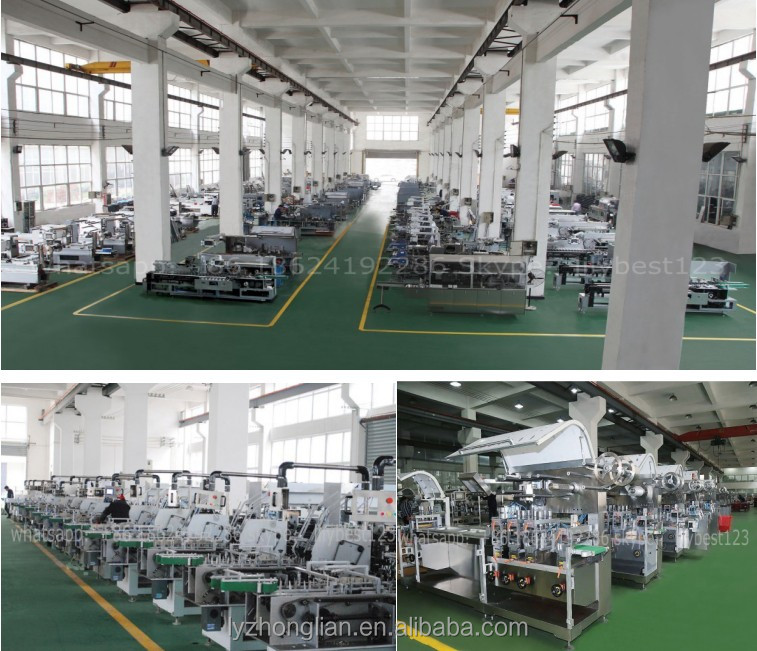

    Company Information

    Liaoyang Zhonglian Machinery Co.,Ltd. is belong to Zhonglian group,was established in 2001.The head office is located in Liaoyang city,Liaoning province.We are the professional manufacturing enterprises of equipment and food equipment,mainly including separating equipment,filling equipment,packing equipment,etc.The company covers an area of ten thousand square meters,production workshop area of seven thousand square meters,own professional technical team and after-sales service team.

    The company took the lead through the ISO9001:2008 International Quality System Certification in the same industry,and having finished certification standards,obtaining Utility Model Patent Certificate and many other awards.

    Our company have built a long-term and stable cooperation relationship with many strong manufacturingenterprises in China,

    can supply the whole project service for our customers with high quality equipment,competitive price,reliable superior service.At present,our successful project are coconut oil production line,liquid filling production line and packing production line and so on.

    At present, our products have been exported tothe United States,Mexico,New Zealand,South Korea,Australia,Turkey,Japan

    ,Thailand,Malaysia,Singapore,Indonesia,Canada,Kenya,Seychelles,Italy,Venezuela,Peru,India,Russia,Denmark,Spain,Finland,Greece,Colombia,and so on more than 30 countries.

    Our aim is saving your valuable time and cost,providing you with the workable solution!

    Hot Selling China GMP Blister Packing Machine Automatic for tablet with CE
