Zhonglian industrial centrifuge industrial centrifuge machine for fertilizer

Ask Lasest Price
Brand Name :	zhonglian
Certification :	ISO, CE,
Supply Ability :	100 Set/Sets per Month
Price :	$8,000.00/sets >=1 sets

Add to Cart

Product Details
Company Profile

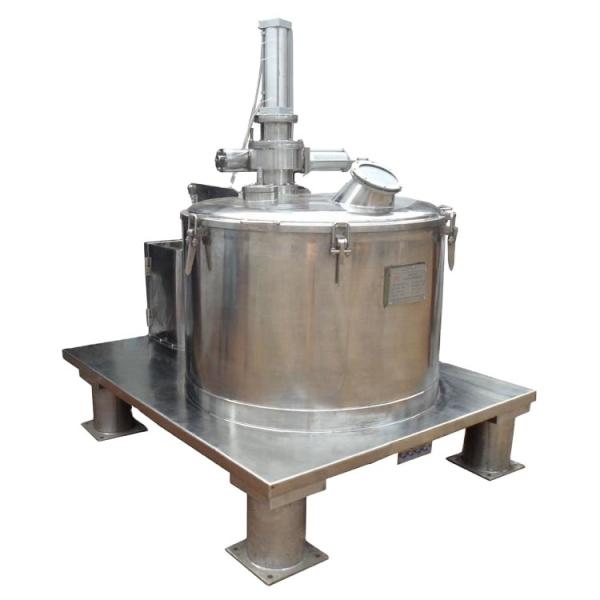

Zhonglian industrial centrifuge industrial centrifuge machine for fertilizer

Model			PGZ800	PGZ1000	PGZ1250	PGZ1600
Bowl	Weight/Kg	800	1000	1250	1600
		Effective height/mm	400	525	630	800
		Filtration area/㎡	1	1.65	2.47	4.02
		Effective volume/L	100	200	398	820
		loading/Kg	130	240	500	1000
		Rotating speed r/min	1500	1200	1000	800
		Separating factor	1007	805	700	572
Motor power/Kw			7.5	15	18.5	37
Dimension(L×W×H)/mm			1700×1400×1330	1950×1500×2040	2460×1800×2200	2900×2200×2580
Weight/Kg			2000	2500	3820	10000

PGZ scraper centrifuge for the flat bottom scraper discharge, intermittent operation, program control of the filter centrifuge. Through advanced PLC programmable controller, frequency conversion governor and brake combination unit, and hydraulic pneumatic, single control center with computer networking. By the hydraulic, electrical control system automatically feeding, separating, washing, dewatering, discharge and other processes, enabling remote operation.

PGZ scraper centrifuge

It can be used with particle size 0.05-0.15 mm in the suspension of solid particles separated from the machine no clutch, no
brakes tile, especially suitable for thermal sensitivity, the operator should not be close to the separation of materials, fully
applicable to explosive, toxic, corrosive industrial field.The machine has a high degree of automation, large capacity, good
separation, running stability, the operation side, etc, can be cleaned from all directions, no basis for the installation,
eliminating the conventional hanging machine feet, simplify the installation process. No base plate weight and the selection of
isolator types of damping systems to produce the vibration device is completely absorbed, on the basis of the ground and around
the equipment without interference, safe and reliable to meet GMP standards.

Main Application

PGZ centrifuges have a prefect automatic performance and a large processing capacity. In accordance with users’ demand, procedures such as feeding, separating, washing, dehydrating and discharging can all be automatically finished followed by remote control. It’s suitable for solid liquid separation of fibroid products as well as suspension which contains fine grains and medium size grains solid. For example:

1)Chemical Industry: gypsum, ammonium sulphide, bluestone, potassium chloride, borax, dyestuff, resin, pesticide.

2) Industry: salt, monosodium glutamate, food additive, starch, sugar, flavoring, antibiotic, vitamin.

3)Food Industry: Sodium glutamate.

4)Mine and Metallurgy Industry: Copper, zinc, minerals, and metal refining.

5)Environmental Protection Industry : Pure water sludge and sewage sludge.

Structure & Principle

It adopts platform structure, with out shell welded with bottom plate.Shell cover is fixed to shell body with flange.Hydraulic pressure is applied to open the cover.Shell cover is equipped with feeding pipe, washing pipe sight glass, viewing-light, scarper device etc.Standard flanges are applied for the external pipe joints. It is a kind of vertical centrifuge with PLC control, automatic filtration and down scraping discharging,which adopts continuously running and discharge.

Driven by the motor,the drum rotates step by step to the speed suitable for feeding,then the products which is to be separated enter to the rotating drum through feeding pipe.

Centrifuge would stop feeding if the products’ volume amounts reach to the predetermined data and the speed raises higher for separation.Suspension’s separation can be made possible by filter cloth (or filter net) under the effect of centrifugal force.Liquid phase is draught out through filter layer and thrown into the empty chamber and finally discharged from liquid outlet while the solid phase remains on the drum to form bucket-shaped filter cake which will be washed in the following steps.

When filter cake meets the requirement of separation, centrifuge will be slowed down to the discharging speed. The scraper begins to take effect and scrape the filter cake from inner wall to the products outlet of centrifuge.

The filter bag of scraper centrifuge

Scraper centrifuge still need to use filter bag.But the filter bag is not the same as normal filter centrifuge.About the material, four kinds of material can be choosen. And also the mesh number can be customized.

The bowl of scraper centrifuge

The bowl is the main part of scraper centrifuge.Same as filter centrifuge, there are many small holes. Difference is a big hole for bottom discharge automatically when scraper working.All stainless steel material or better meterial.

The flip cover of scraper centrifuge

PGZ series scraper centrifuge height is higher than normal filter centrifuge, due to the scraper device. All material is stainless steel material. If the raw liquid is salt,the material need to be made more corrosion resistant.

The upper cover of scraper centrifuge

The upper cover has feeding port, cleaning water feeding port, also observe port and light hole, nitrogen gas port if need.Most important is the scraper device.All the port on the upper cover, the size can be customized.

Shipping

Liaoyang Zhonglian Machinery Company was established in October 2001,own many years of professional production experience.The company is located in China's earliest engaged in the centrifuge factory liaoyang city,liaoning province,covers product workshop area of seven thousand square meters,special engaged in the centrifuge separator and other machinery.The products have been widely used in many industries,such as ,food,chemical and many other industries.Our products were exported to many countries,North American countries such as the USA, Mexico.Aoutheast Asian countries such as Thailand, Singapore, Malaysia, Indonesia.East Asian countries such as Korea.South American countries such as Venezuela, Peru. With reliable quality & excellent after-sales service,we won the support of the broad masses of overseas customers.
